  1. #11
    Senior Member CAPTAIN AWESOME's Avatar
    Join Date
    Aug 2008
    Location
    Bentonville, AR, USA.
    Posts
    430
    Quote Originally Posted by nic579 View Post
    Needs a fat UNI or K&N
    I've got a UNI, just not in the pic.

  2. #12
    Senior Member kenessex's Avatar
    Join Date
    Oct 2005
    Location
    Galena, AK, USA.
    Posts
    5,780
    We endurance raced one of those with a KZ650 front end on it. Even with the stock KZ caliper and disc it had plenty of brake. Stick a big disc and 4 piston caliper on it and it will be great. Personally, I don't like the power of a 540. It just revs a little too slowly and the power is in the wrong place for roadracing, it might be great on the street or a dirt track. There are some cool SR/XT/TT parts on the for sale page at VFT.org.

    Enjoy it, thumpers are cool.
    drgonzo likes this.
    WERA 119
    CCS 119
    CRA 119
    AHRMA not anymore
    \"Think twice before you speak, and then you may be able to say something more insulting than if you spoke right out at once.\"
    Evan Esar
    Newbies, Geeto and Tex (Bye Tex)hate me!!

  3. #13
    Senior Member CAPTAIN AWESOME's Avatar
    Join Date
    Aug 2008
    Location
    Bentonville, AR, USA.
    Posts
    430
    Apparently the banjo bolt for the rd400 front caliper is a m10x1.0 vs. standard 1.25. I managed to get the caliper reassembled with new seals though, so as soon as that's in I'll be ready to ride.

    Also got a chance to mess with some spare Cb450 covers. I think they will do the trick with some trimming. I flipped them from left to right, but will still need to do a possible pie cut to get them a better fit.





    drgonzo likes this.

  4. Remove Advertisements
    CafeRacer.net
    Advertisements


  5. #14
    Senior Member CAPTAIN AWESOME's Avatar
    Join Date
    Aug 2008
    Location
    Bentonville, AR, USA.
    Posts
    430

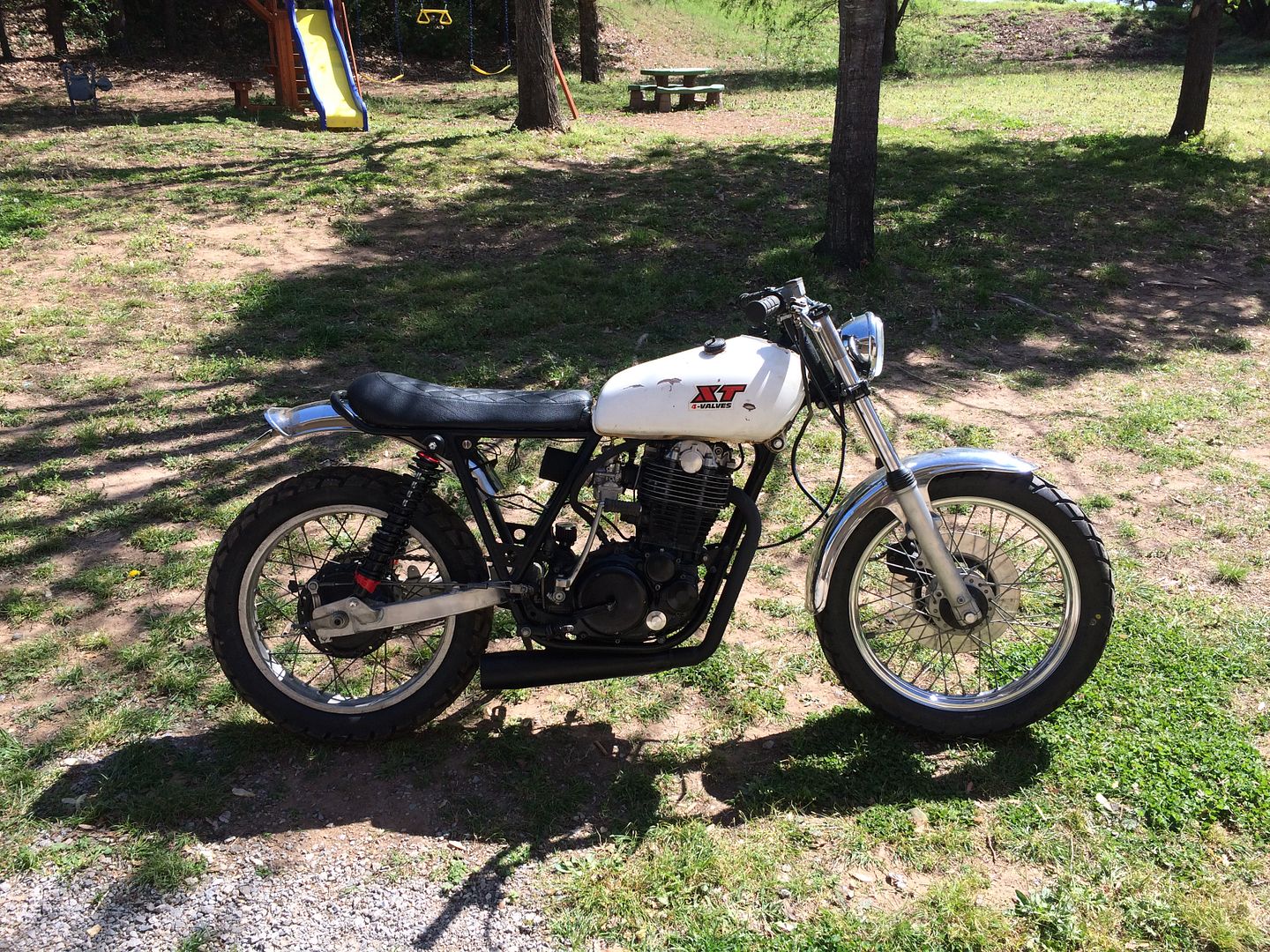

    The titty gots some new shoes. Still waiting on the caliper banjo bolt. Got the rear brake switch functional, just need to finish wiring. Clutch cable won't work with the aftermarket perch, so I need to track down the OG one until I can get a fancy cable made. Was really hoping to run it around the block today, but it shall wait. I've got all the vm34 Mikuni stuff ready to order, totaling about $117 including all the necessary jets to get me close enough.


  6. #15
    Senior Member CAPTAIN AWESOME's Avatar
    Join Date
    Aug 2008
    Location
    Bentonville, AR, USA.
    Posts
    430
    I finally broke down and bought a Mikuni VM34. The stock carb was bananas from the get go, and getting a good reliable start cold was somewhere in the 4-5 kick range.

    I decided to copy some average jetting data that has been posted with the 34 in hopes I could start out in a decent spot, so I went with the following:

    main 230
    pilot 27.5
    needle jet p6
    needle 6dh3 on the 3rd clip

    Started up and idled on first kick.



    Probably could still use some tuning, but I need to address the dragging clutch first as well as wiring up lights. Also need to get a Uni filter that will fit the mouth of this carb as this one is slightly larger than the factory.

    Also got the front brake bled, so I can stop now too.
    drgonzo likes this.

  7. #16
    Senior Member CAPTAIN AWESOME's Avatar
    Join Date
    Aug 2008
    Location
    Bentonville, AR, USA.
    Posts
    430
    It's been a good week. Got my antique tag/title taken care of and the Progressive shocks came in today. Hopefully the new clutch pushrod fixes my dragging clutch issue and I can do more than just a poke around the block.


  8. #17
    Senior Member CAPTAIN AWESOME's Avatar
    Join Date
    Aug 2008
    Location
    Bentonville, AR, USA.
    Posts
    430
    After a week chasing my tail, the clutch issue has been resolved with an NOS push rod. It was exciting to feel it finally allow me control of the clutch, so I started piecing together the throttle cable elbow for the vm34, and putting on the new UNI filter that has the properly sized opening. I kicked it to life, and took my first "real" test rides around the neighborhood.

    First few impressions:

    This thing feels so light and nimble. Definitely a plus.

    Shocks feel a little stiffer, but I think it suits my riding style.

    A little more ticking from the exhaust valves than expected. May have to do the grub screw mod.

    From mid to full throttle the bike loads up and falls flat on it's face. Lots of popping on decel. I was thinking the main jet may be a tad rich, but I noticed a slight puff of air coming from the exhaust I made up. It was a factory drain hole in the kz440 muffler back when it was still double wall. I think this clearly isn't helping the popping, so it's first on the list before moving on to any other possible air leaks. The stock intake rubber is original, and the vm34 sits a little looser than expected until it's cinched down. I may find a new intake boot that suits the vm a little better, but for now just want to confirm it's sealing up tight.

    Plug color is a lighter coffee more towards the rich side of the spectrum but that could be from the idle circuit. The electrode strap shows no major heat past mid strap, so I don't think I'm going lean anywhere.

    I'm going to re-check timing with a gun and adjust accordingly.

    Lights still need wired, but that shouldn't take much effort.

    I think my master cylinder may be a hair on the small side. It's 11mm and I think 12 or possibly 13mm would give me a little firmer feel. After a few hundred test miles I should know whether it's going to need changed for sure though.








  9. #18
    Senior Member TrialsRider's Avatar
    Join Date
    Jan 2011
    Location
    Ontario, Canada
    Posts
    5,386
    I thought engine pop on deceleration was usually a sign of a Lean operating condition? and mid to full throttle falls flat on it's face would imply Lean fuel mix &/or late timing
    … I guess the spark plug reading should clear that up, let us know what it takes to finally sort it out.

  10. #19
    Senior Member CAPTAIN AWESOME's Avatar
    Join Date
    Aug 2008
    Location
    Bentonville, AR, USA.
    Posts
    430
    I believe it can both ways from what I understand. Unburned fuel in the hot exhaust causes another "ignition" within the pipe. The hole in the pipe isn't helping either, as that can cause the popping.

    I'm not jetting anything until air leaks are gone, timing is checked, valve lash re-checked, etc. I'll throw in a new plug and do a real plug chop after those are addressed. One thing at a time should sort it out. Luckily if it is just a main jet swap that would be a quick and easy fix.

  11. #20
    Senior Member TrialsRider's Avatar
    Join Date
    Jan 2011
    Location
    Ontario, Canada
    Posts
    5,386
    Totally off the cuff here; if you've changed the carburetor to a vm34 you should be able to just move the cir-clip one notch lower on the main jet needle. That will richen the mixture for the top half of your carbs throttle operation and quickly determine in it is too rich or too lean.

    … I had bikes that required that adjustment bi-annually to accommodate for seasonal atmospheric climate changes.
